As the member of PANDARUS ELITE arrow family, ELITE XT is a parallel shaped CAC structure arrows, aluminum alloy core covered by high modules carbon fiber make the shaft more durable and easier tuning, the CAC construction can greatly reduces ineffective twisting and maintains an excellent attitude during flight, super slim shaft maximum speed and accuracy with extremely less wind deflection, that is a true all-round performer for Indoor or outdoor target shooting, recommended for compound bow.
3.2mm/0.125” ID, super Micro diameter design
High module Carbon and 7075 aluminum composited (CAC structure)
Parallel shape
Spine aligned
Straightness: ±.0015″
Weight Tolerance: +/-1gr per dozen

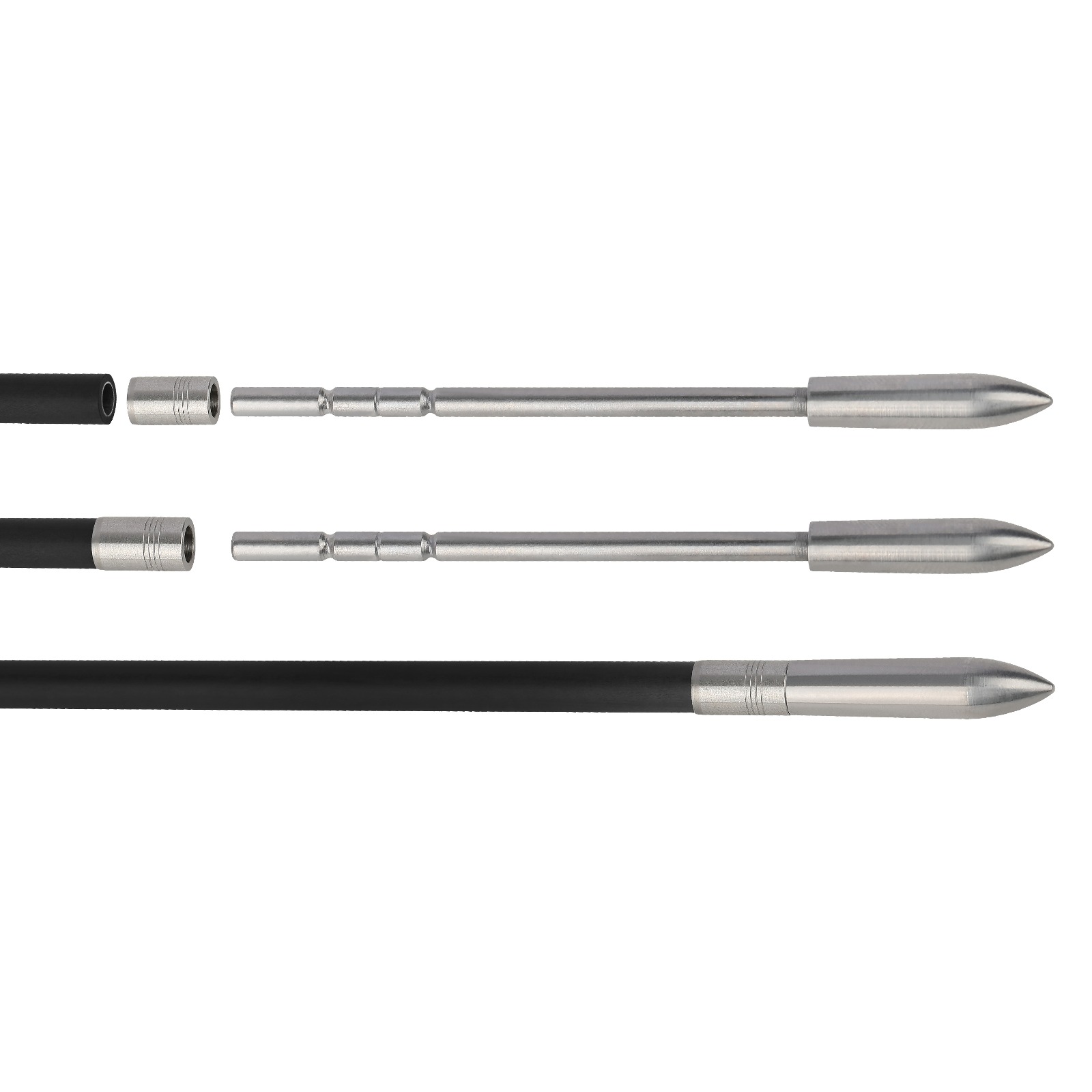

Package Includes: 12 per pack, includes premium hardened SS points, 7075 pins, nocks, and collars

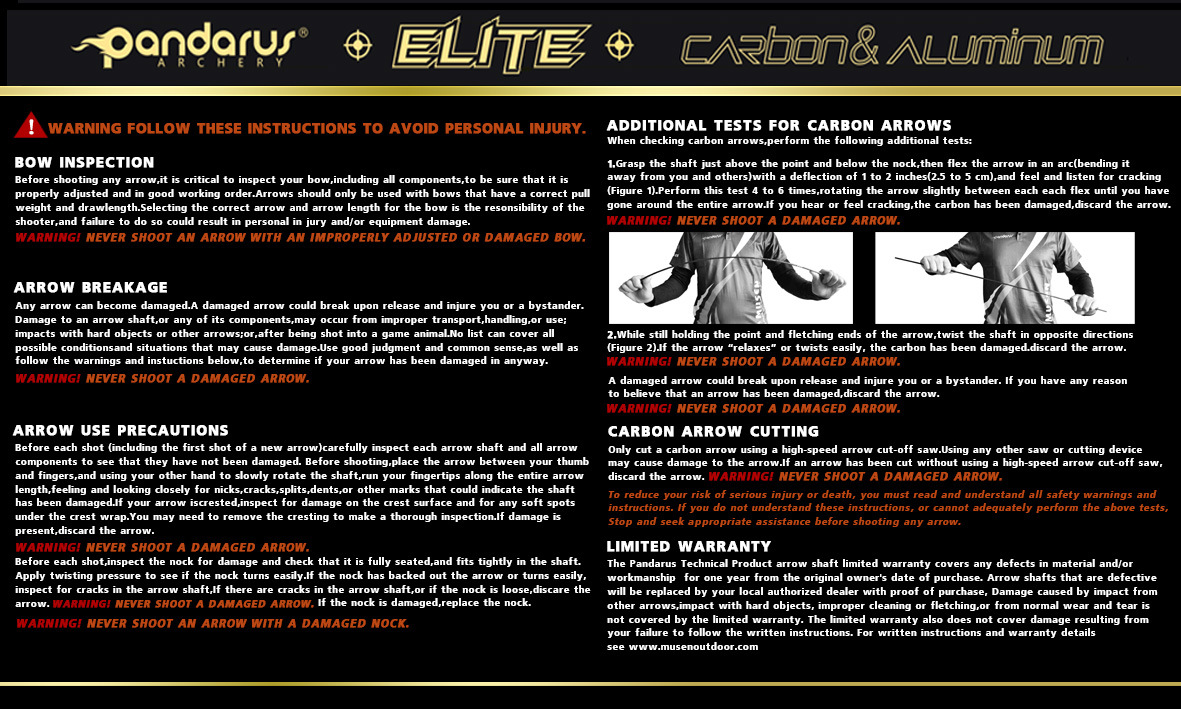

Note: Hot Melt is NOT recommended for CAC arrows; if used, keep the temperature as low as possible.

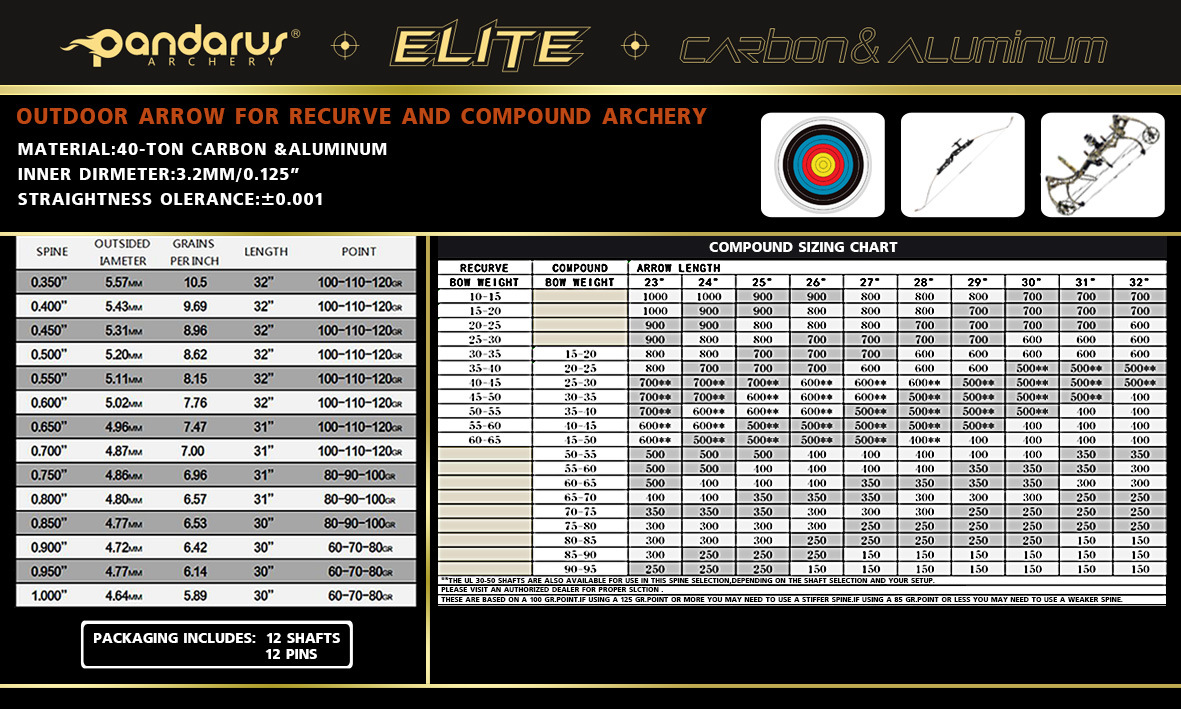

SPINE |
OD (MM) |
GPI | POINT | LENGTH |
350 | 5.57 | 10.50 | 100-110-120gr. | 32" |
400 | 5.43 | 9.69 | 100-110-120gr. | 32" |
450 | 5.31 | 8.96 | 100-110-120gr. | 32" |
500 | 5.20 | 8.62 | 100-110-120gr. | 32" |
550 | 5.11 | 8.15 | 100-110-120gr. | 32" |
600 | 5.02 | 7.76 | 100-110-120gr. | 32" |
650 | 4.96 | 7.47 | 100-110-120gr. | 31" |
700 | 4.87 | 7.00 | 100-110-120gr. | 31" |
750 | 4.86 | 6.96 | 80-90-100gr. | 31" |
800 | 4.80 | 6.57 | 80-90-100gr. | 31" |
850 | 4.77 | 6.53 | 80-90-100gr. | 30" |
900 | 4.72 | 6.42 | 60-70-80gr. | 30" |
950 | 4.62 | 6.14 | 60-70-80gr. | 30" |
1000 | 4.60 | 5.89 | 60-70-80gr. | 30" |
